Description
Drive system: Direct drive by AC servo motor
Speed control: Frequency detection servo motor phase locked to a quartz crystal oscillator
Speed: 33.33 and 45rpm
Speed selection: Slide switch
Wow and flutter: Less than 0.015% WRMS
S/N ratio: Over 75dB (DIN-B rated)
Starting time: Less than 1.5 seconds
Absolute speed accuracy: Over 99.998%
Turntable platter: Aluminium alloy diecast, 30cm diameter

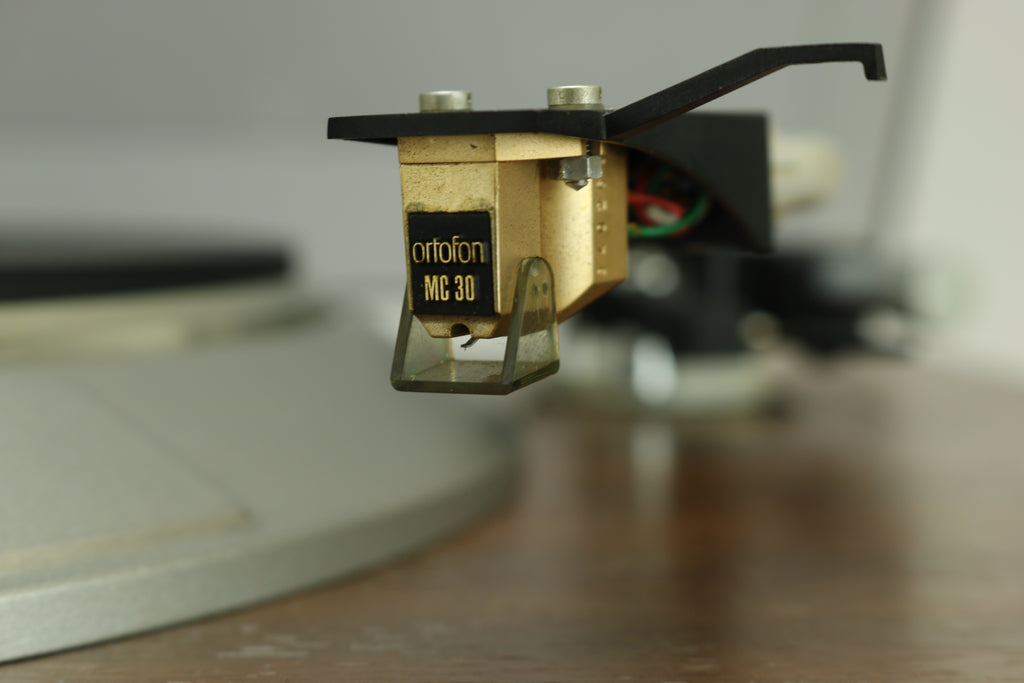

Cartridge Ortoton MC30
Stylus tip: fine line diamond
Tip radius: 6 um
Frequency response: 20 to 20,000Hz +-1dB
Frequency range: 5 to 60,000Hz
Vertical tracking angle: 20 degrees
Channel separation: 20dB
Channel balance: 1dB
Tracking force: 1.5g
Weight: 7g
